DESIGN PORTFOLIO
![CONFLUENCE_COVER_EDIT1_edited.jpg](https://static.wixstatic.com/media/6bde44_d587a08cab014e99978f56e31a114523~mv2.jpg/v1/fill/w_980,h_926,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/6bde44_d587a08cab014e99978f56e31a114523~mv2.jpg)
Confluence
Housing for the future
Nestled in the heart of the Tanglin Halt Estate, The Confluence@Tanglin aims to rejuvenate the ageing estate by re-thinking the traditional role of a housing block in a community
Bringing the community to the doorstep, by breaking up typical communal spaces scattered around the neighborhood, and re-adapting them into a housing block.
Every resident will never be too far away from the community with the community right at their doorsteps
Academic Year: D.Arch Year 2
Location: 55 Queensway, Singapore 149058
Type: 24 + 7 Storey Residential Apartment
Site Area: 4000 m²
Plot Ratio: 2.4
Maximum Permitted GFA: 9600 m²
Proposed GFA: 9172.51 m²
Planning Area: Queenstown Planning Area

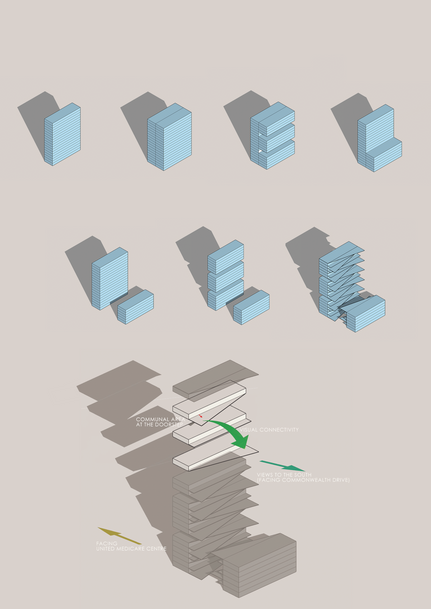

Rendering and diagrams
No resident will be too far away....... with the community at their doorsteps
![CONFLUENCE_PARTPLANEDIT.jpg](https://static.wixstatic.com/media/6bde44_b9409a40378f4442a7f4c0cf8e5f6656~mv2.jpg/v1/fill/w_762,h_1078,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/CONFLUENCE_PARTPLANEDIT.jpg)
Part Plan | Typical Floor
![CONFLUENCE_RCPELECT.png](https://static.wixstatic.com/media/6bde44_2e80938df900463b9368e43b58521036~mv2.png/v1/crop/x_0,y_0,w_2480,h_3505/fill/w_979,h_1384,al_c,q_90,usm_0.66_1.00_0.01,enc_avif,quality_auto/CONFLUENCE_RCPELECT.png)
Electrical Layout
